Commercial & Industrial ESS

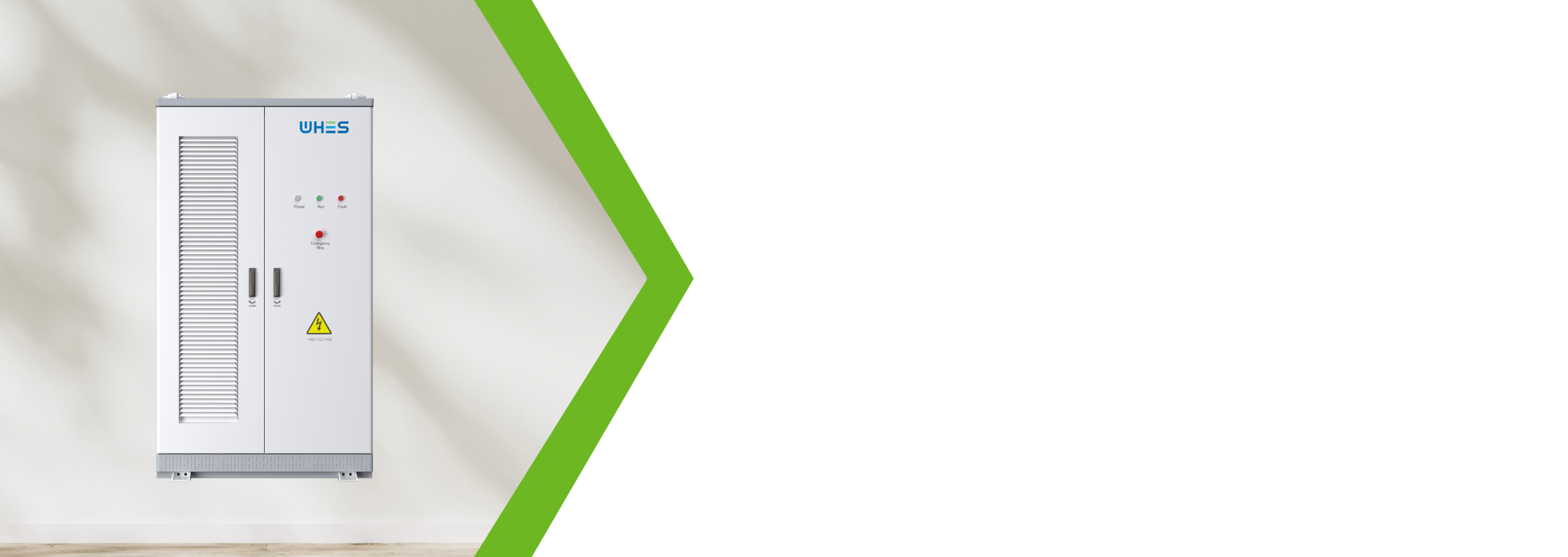

Energy Storage System PC-G1

Large-Scale Commercial & Industrial Energy Storage System

50kW / 233kWh | All-In-One. Smart power, built to last for commercial and industrial energy storage applications

Contact Our Team
Download Datasheet

50kW

Inverter Power

233kWh

Battery Capacity

<10ms

EPS Switching Time

IP55

Protection Rating

Air + Liquid

Cooling

Item
Specification
System Type
C&I All-in-One Energy Storage System
Model
WH-TIANWU-50-233B
Power Rating
50kW
Battery Capacity
233kWh
Battery Type
LFP (LiFePO4)
Cell Specification
3.2V / 280Ah
Rated Voltage DC
832V
DC Voltage Operating Range
728-936V
Rated Output Power in VA
50kVA
Rated Output Current
72A
Rated Voltage AC
400V, 3P+N+PE
Rated Frequency AC
50Hz
Backup / EPS Switching Time
<10ms
Protection Rating
IP55
Cooling Method
Air cooling (PCS) / Liquid cooling (Battery)
Communication Protocols
Modbus, TCP/IP
Dimensions (W*D*H)
1400 x 1350 x 2100mm
Weight
Approx. 2700kg
Manufacture Country
China

  • PC-G1 (TIANWU) 50kW/233kWh is a highly integrated all-in-one energy storage system combining battery, PCS, fire protection, thermal management and EMS. It is designed for easy transportation, quick installation and low O&M;, providing stable and efficient power for commercial and industrial applications.

  • • 50kW power rating with 233kWh battery capacity

    • Highly integrated ESS for easy transportation and O&M;

    • Integrated design enables quick site setup and use, with installation in less than 1 day

    • CATL 280Ah LFP battery packs

    • Four-level protection from Pack-Rack-PCS-System

    • Independent MSD for DC safety

    • Smoke and heat detectors with audible and visual alarm

    • Aerosol fire suppression

    • Air cooling for PCS and liquid cooling for battery

  • • IEC 62933 and UL9540A certified

    • IP55 protective class

    • High-quality CATL 280Ah battery cells

    • Intelligent monitoring and protection

    • Designed for long service life in commercial and industrial environments

  • • Shopping Mall

    • Factory

    • Farm

    • Community

    • C&I; backup power

    • PV self-consumption and peak shaving

  • • Product Datasheet
