EV AC CHARGER 22KW

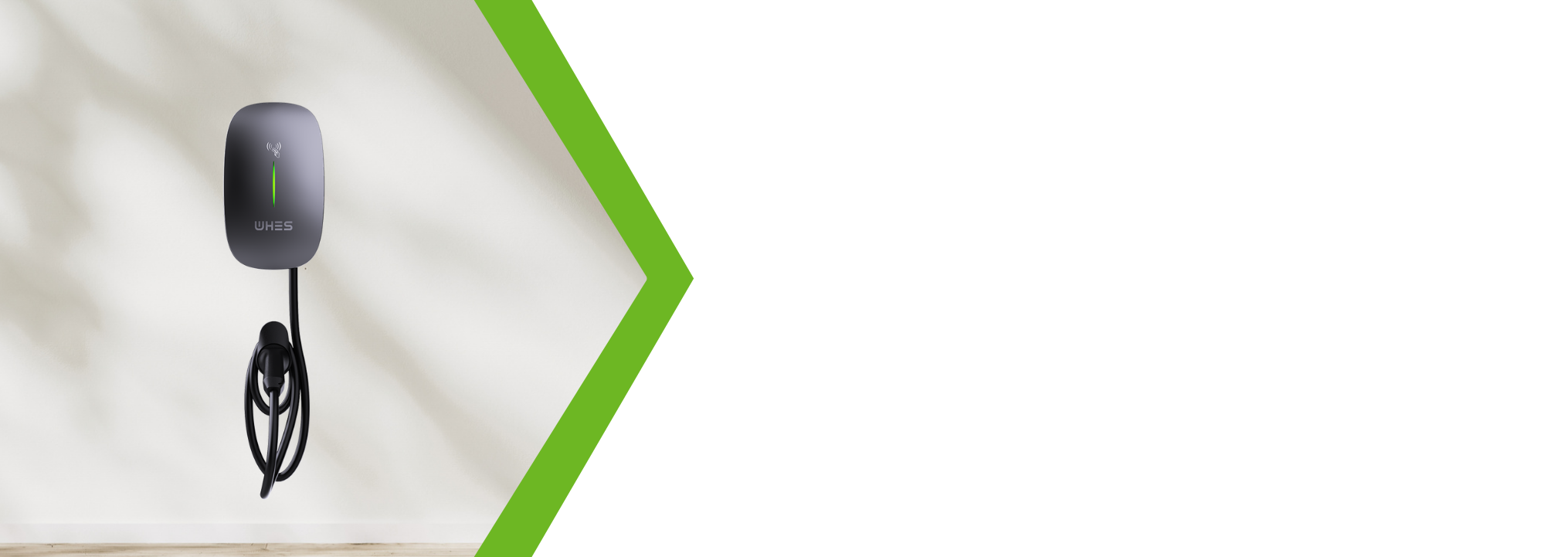

Electric Vehicle Charger
A 22kW three-phase EV AC charger with RFID access, app scheduling, dynamic load balancing and PV-compatible charging support.
22kW
Output Power
400V
Output Voltage
32A
Max Current
IP65 / IK10
Protection Rating
OCPP 1.6
Protocol
-
The EV AC Charger 22kW is a three-phase electric vehicle charging solution designed for convenient wall or pole-mounted installation. It supports intelligent charging features, dynamic load balancing, multiple communications and PV charging integration.
-
• 22kW EV AC charging
• Type 2 cable
• Plug to Charge / RFID card / App start mode
• Customizable enclosure choice
• Convenient back plate for easy cable access
• Multi communications
• App charging scheduling
• Dynamic load balancing
• OCPP 1.6 Json protocol
-
• 30mA Type A + 6mA DC RCD
• Relay-sticking protection
• IP65 ingress protection
• IK10 impact protection
• Over current and residual current protection
• Surge protection
• Over/under voltage and frequency protection
• Over temperature protection
-
• Residential EV charging
• Commercial EV charging
• PV-compatible EV charging
• Wall-mount installation
• Pole-mount installation
-
